Product Number: 005-OR600-18D

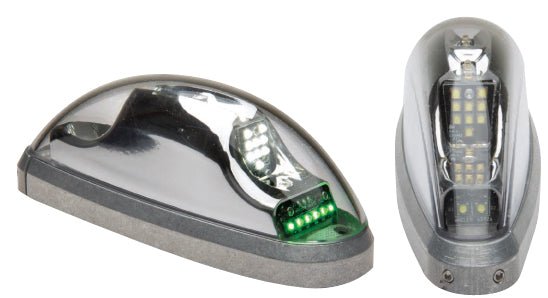

(6" Navpad base) Whelen Orion LED Wing Tip Nav / Strobe / Position Assy...
Whelen Engineering is proud to introduce the NEW ORION600 Series of FAA/TSO approved LED aviation lighting.
Incorporating the latest state-of-the-art LED Technology available in an all-inclusive package, the ORION 600 series eliminates the need for external flasher boxes.
Flush mountable for a wide variety of applications with minimal integration and easily retrofit-able to the Whelen legacy strobe products.
The ORION 600 series is quite simply the brightest form of LED Anti-collision and Position lighting available.
FAA-PMA Approved
Approval Basis: FAA-TSO Approved
Brand: Whelen Strobes / Lighting
Specifications:
- Weight: 0.5 lbs.
- Dimensions H x W x L 2.04" (52mm) x 1.78" (45mm) x 5.65" (144mm)
- Current Draw: 12V / 28V 0.48 / 0.17
- Amps Position 1.0 / 0.5 Amps Avg.
- Position Led Colors: Aviation Red, Aviation Green, Aviation White Anti-Collision
- Lens: Polycarbonate hard coated, Field Replaceable
- Approvals: FAA TSO-C96a, TSO-C30c Types I & III, E-TSO
OEM Part Number:
Model OR6001G Part 01-0771733-01 - 12V Green
Model OR6001R Part 01-0771733-02 - 12V Red
Model OR6002G Part 01-0771733-11 - 24V Green
Model OR6002R Part 01-0771733-12 - 24V Red
Replaces: 6" Base Nav/Strobe/Pos light assemblies
Eligible Aircraft: All models with a 6" nav pad on the wing tips.
