Cessna Conical Wing tips (1974 and later) (Fiberglass) 172, 180, 182, 185, 206, 20-GF0723200-18D, 0723200-5, 0723200-6

  • Sale
  • Regular price $722.20
Shipping calculated at checkout.


Product Number: 20-0723200-18D

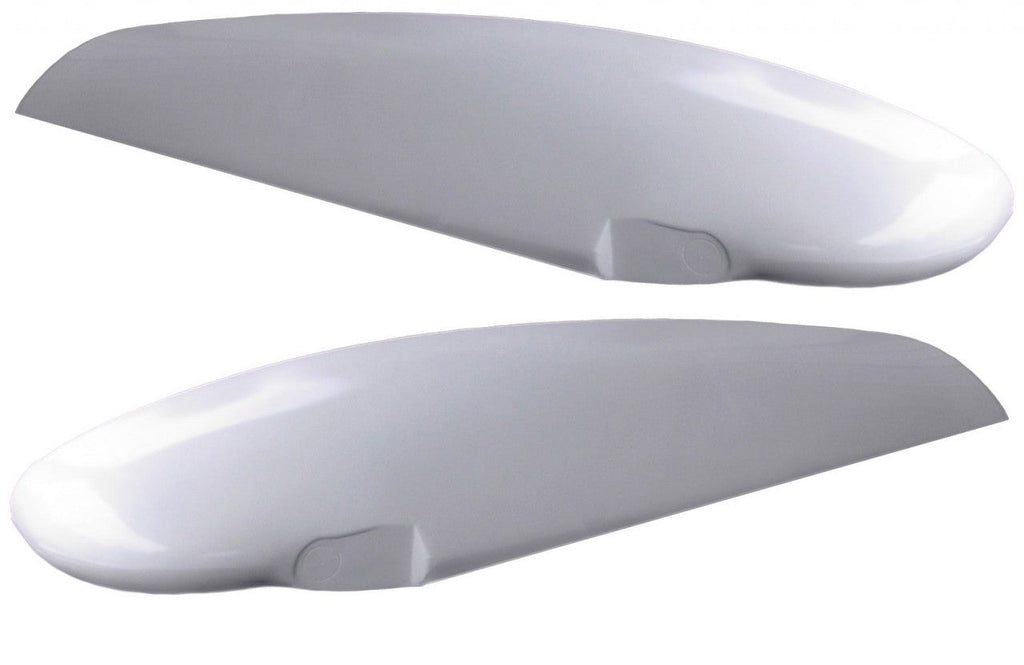

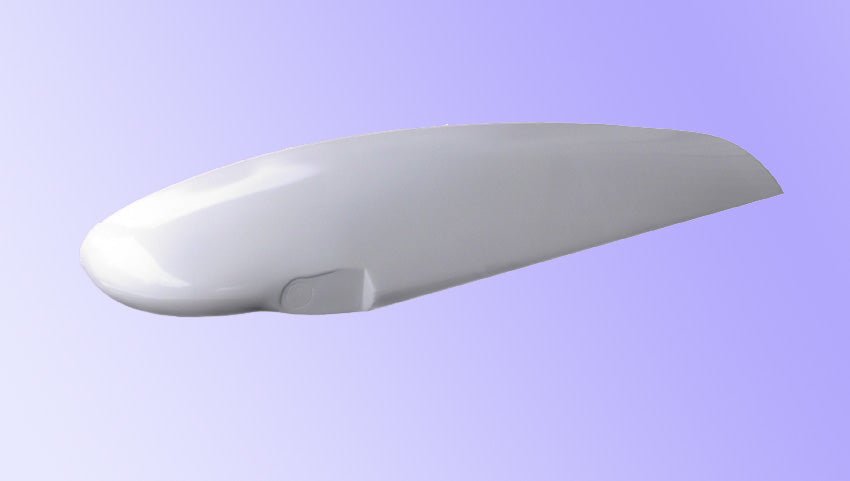

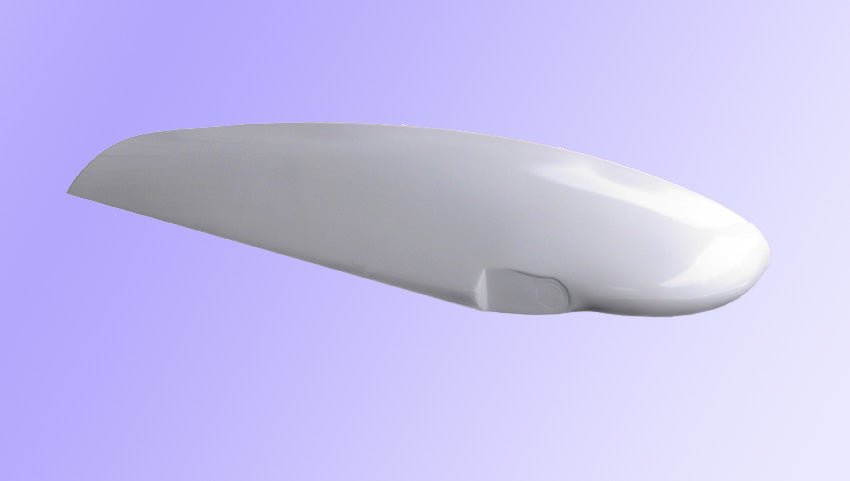

Cessna Conical Wing Tips - drooped slightly at the trailing edge
Reproductions of the OEM wing tips

FAA-PMA Approved

Fiberglass

These tips fit the single engine Cessna's with the high lift leading edge wing.

1974 and newer

Replaces OEM part numbers: 0723200-6,  0723200-32, 0723200-5,  0723200-33

Eligible Aircraft: Cessna


1973 & on 172M, 172N, 172P, 172Q, 172RG
1977 & on R172K (Hawk XP) S/N  R1722000 thru R1723454
1980 & on 172RG S/N 172RG0001 thru 172RG1191
1973 & on 180J, 180K. S/N 18052285 thru 18053203
1972 & on 182P, 182Q, 182R, T182 S/N 18260826 thru 18268615
1978 & on R182, TR182 S/N R18200001 thru R18202041
1973 & on A185F 18502091 thru 18504448
1972 & on U206F, TU206F, U206G, TU206G, S/N U20601701 thru U20607020

Please Specify year model, serial number and type of aircraft in your order to determine which wing you have

NOTE: Lighting, Light Retainers, Hardware, and aluminum edge strips are transferred from your original parts. They are not included.

Aluminum edge strip OEM part numbers:
0423008-4 LH upper, RH lower
0423008-5 RH upper, LH lower
0523565-21 LH Upper, RH lower
0523565-22 RH upper, LH lower

Conical Light retainer flanges not provided.
Use Cessna part #073201-1 & -2 or -5 &-6 for strobes.

Late model Cessna's with high lift leading edge. 1974 and newer,
except for Cessna 150/152.
