Cessna Conical Wing Tips, Fiberglass (1971 or earlier 172, 182, 185, 206, 207)(150/152 1971 and newer) 20-GF523565-29-30-18D, 0523565-29, 0523565-30

  • Sale
  • Regular price $722.20
Shipping calculated at checkout.


Product Number: 20-GF0523565-29-30-18D

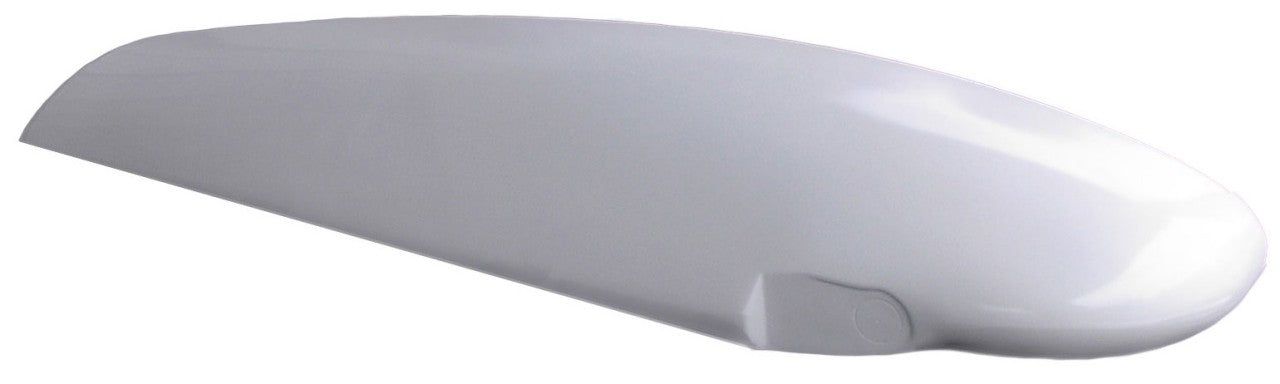

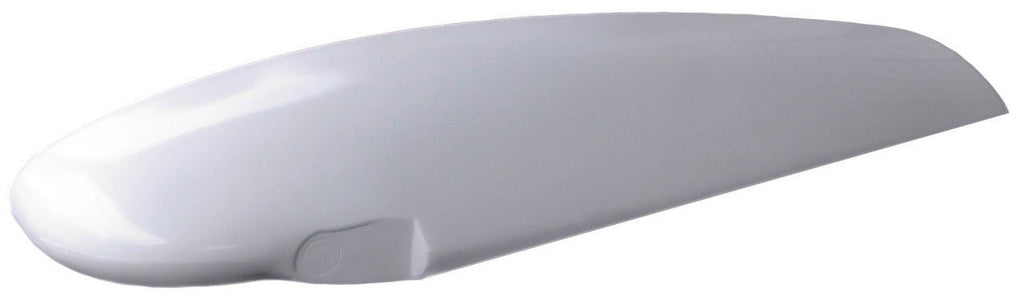

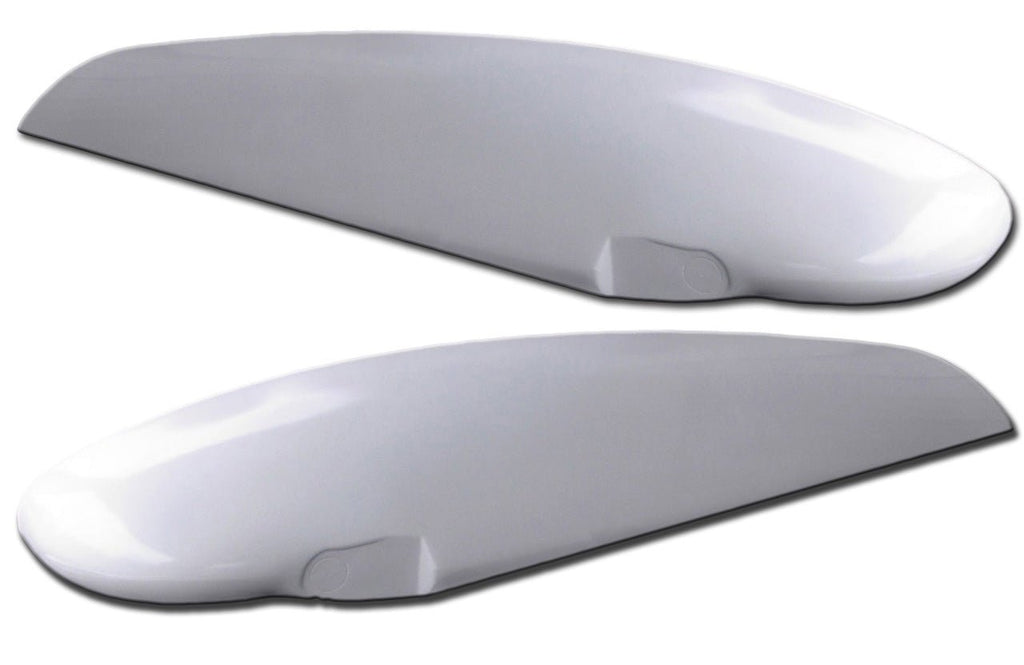

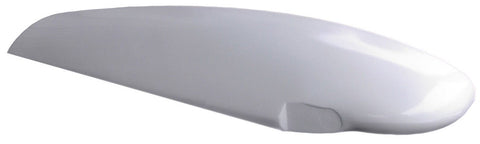

Cessna Conical Wing Tips

FAA-PMA Approved


Material: Fiberglass

Product #20-GF0523565-29-18D, Left Wing tip

Replaces: Cessna Part # 0523565-29-791, 0523565-30-791, 0523565-201

Product #20-GF0523565-30-18D, Right Wing tip

Replaces: Cessna Part # 0523565-30, 0523565-30-791, 0523565-200

Fiberglass reproductions of the OEM wing tips.

These tips fit the single engine Cessna's without the high lift leading edge wing.

Specify year model, serial number and type of aircraft to determine which wing you have.

Eligible Aircraft: Cessna
1971 & ON: 150L, 150M, A150, A150L, A150M
152, A152 1971-72
172L s/n 17259224 thru 17260758 1971-72
180H s/n 18052176 thru 18052284 - 1971
182N s/n 18260446 thru 18260825 - 1971-72
A185E s/n 18501833 thru 18502090 1971
U206E, TU206E s/n U20601605 thru U20601700 1971 & Up
207, T207, 207A, T207A

NOTE: Lighting, Light Retainers, Hardware, and aluminum edge strips
are transferred from your original parts. They are not included.

Aluminum edge strip OEM part numbers:
0423008-4 LH upper, RH lower
0423008-5 RH upper, LH lower
0523565-21 LH Upper, RH lower
0523565-22 RH upper, LH lower

Conical Light retainer flanges not provided.
Use Cessna part #0523566-1 & -2 or -5 & -6 for strobes.
