Product Number: 60-28WRKIT-18D

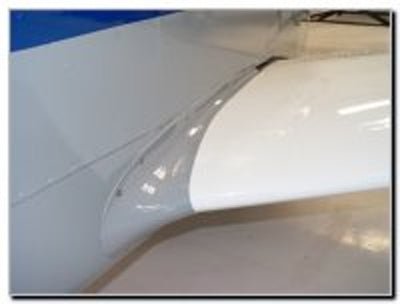

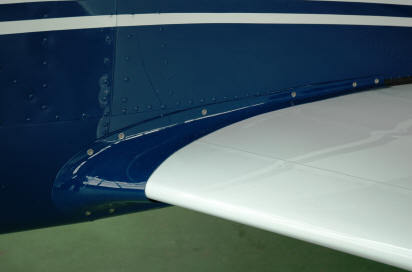

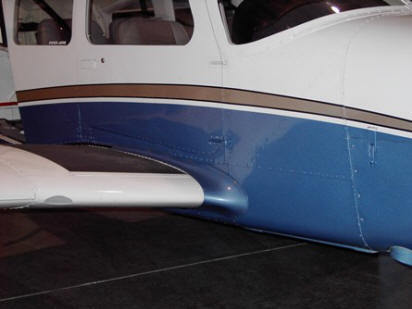

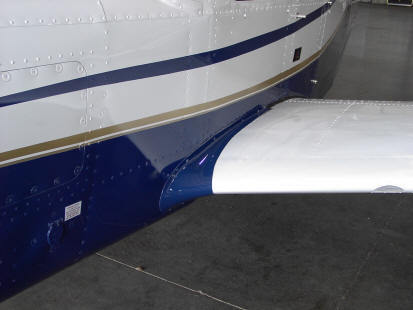

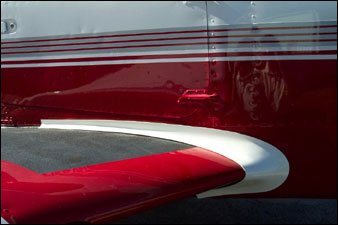

Piper Wing Root, Fillet Fairings
Increase cruise speed 1-2 MPH by reducing interference drag at the wing to fuselage intersection. By smoothing the sharp junction at the leading edge of the wing, where it meets the fuselage, drag is reduced and the air over the wing is cleaner. Climb and handling are also noticeably improved and stabilator authority is improved in the flare. These fiberglass, white gel-coat finished parts are easily installed using rivnuts and screws. All attachments can be accomplished from the outside of the aircraft.
The kit comes with all of the parts necessary to install them and is fully STC'd
FAA-PMA-STC approved: STC No. SA1216GL
Eligible Aircraft: Piper PA28-140, PA28-150, PA28-160, PA28-180, PA28-235, PA28-151, PA28-161, PA28-181, PA28-201T, PA28-236, PA28R-180, PA28R-200, PA28R-201, PA28R-201T, PA28RT-201, PA28RT-201T.
Kit includes a set of two fairings and hardware and with installation instructions.
Typical installation time: 3.25 hours
Many mechanics / pilots prefer to change the wing root when installing the fairings. Wing Root Seal may be purchased here.
Product Number 60-H-793-000x2-18D
