Product Number: 26-C150-FGS-18D
Cessna 150 and 152 Flap Gap Seal Kit
One Kit does both left and right wing flap gaps
FAA-PMA STC approved
Supplemental Type Certificate No(s) SA2381NM
Eligible Aircraft: Cessna 150, 150A, 150B, 150C, 150D, 150E, 150F, 150G, 150H, 150J, 150K, 150L, 150M, A150K, A150L, A150M, 152, A152,F150G, F150H, F150J, F150K, F150L, F150M.FA150K, FA150L, FRA150L, FRA150M
Performance: 4 mph increase in cruise speed
50-100 fpm improved rate of climb
Material: 2024T-3 Aluminum, plus stainless hardware
Finish: Zinc oxide primer
Average Installation time: 7.5 hours
Our Flap Gap Seal Kit is unlike any other ever offered for Cessna Aircraft.
The revolutionary new installation makes them easy to install, and they remove in minutes and get out of your way for inspections, annuals, and service to the flaps.
They are the only seal on the market that fills the entire gap, making them as aerodynamic as possible adding 4 mph in cruise speed.
They are made of 2024T-3 Al clad aluminum for superior strength, and laser cut for a perfect fit.
The Kit comes complete with all stainless steel hardware, easy to follow step-by-step instructions, and the Supplemental Type Certificate.

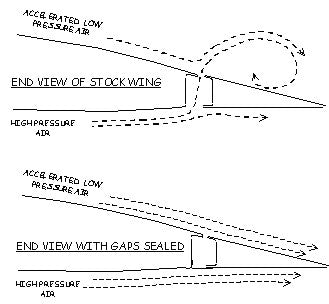

The purpose of a Gap Seal is to create a pressure barrier between the high pressure air on the bottom of the wing and the low pressure air on the top of the wing. The diagramed picture shows how the air moves upward through the gaps, thus causing significant drag and reduced control authority.
Another benefit to a Gap Seal is that it smooths the air traveling along the bottom of the wing, thus further improving airflow.
The effects of a good Gap Seal kit will be:4 mph increase in cruise speed. 50-100 fpm improved rate of climb.
