Product Number: 60-28HF-18D
Piper Flap Hinge Cover Fairings

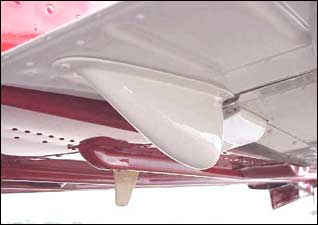

Flap Hinge Fairings reduce drag by smoothing the airflow over the forward facing u-channel and flap attachment bolts. These will add 1-2 mph in cruise speed. Some large bulky variations on the market today use the "if it looks good it must be good" principal, often times adding so much wetted area to the slip stream they can actually INCREASE DRAG! Flap Hinge Fairings were actually developed in a wind tunnel for maximum efficiency.
They are made of a lightweight, virtually indestructible material called KYDEK. Attachment is simple using Rivnuts and Screws for easy removal during annuals or inspections.

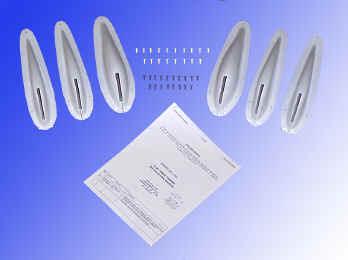

The kit comes with all of the parts necessary to install them and is fully STC'd
FAA-PMA-STC approved: STC No. SA1194GL
Eligible Aircraft: Piper PA-28-140, PA-28-150, PA-28-160, PA-28-180, PA-28-235, PA-28-151, PA-28-161, PA-28-181, PA-28-201T, PA-28-236, PA-28R-180, PA-28R-200, PA-28R-201, PA-28R-201T, PA-28RT-201, PA-28RT-201T.
Typical Installation Time: 5 Hours
Finish: Gloss white, finish color is very close to standard white, this part may not require painting
